CNC Tool Lathe Machining Cutting Metal Milling Insert RCKT1606MO-DM

  • Product ID：Carbide CNC Inserts
  • WhatsApp: +8615674176958
  • Tel: +8615674176958
  • Email: sttsifangzhuo@gmail.com
  • equest a quote

Products Display

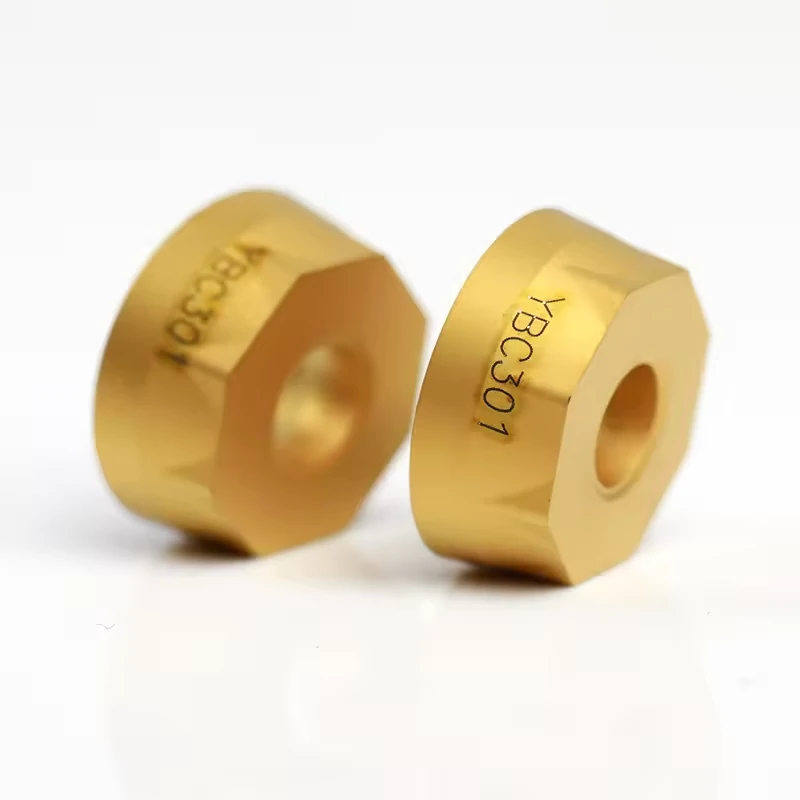

RCKT1606MO-DMRCKT1606MO-DM

RCKT1606MO-DMRCKT1606MO-DM

Products Description

Description

Advantages
1. Utilizing 100% raw material.
2. Exhibiting outstanding resistance to wear and abrasion.
3. Delivering CNC tools with better cost-effectiveness.
4. Sustaining continuously research, development, and production capabilities to align with market trends.
5. Providing comprehensive technical support to address customers' processing challenges.
6. Ensuring prompt delivery through substantial inventory availability.


Specification

Specification

Grade
Grade
Coating
ISO
Grade description
YBC302
CVD
P20 - P35
CVD coated P20-P35 carbide grade for medium operation to roughing of steel at higher cutting speed. Optimal performance of wear resistance and toughness for a wide application field.
YBC301
CVD
P20 - P35
CVD coated P20-P35 carbide grade for medium operation to roughing of steel at lower cutting speed.
YBC401
CVD
P30 - P50
M30 - M40
CVD coated P30-P50/M30-M40 carbide grade for roughing operation of steel at lower cutting speed and unstable condition.
YBM251
CVD
P20 - P30
M15 - M35
CVD coated P20-P30/M15-M35 carbide grade for medium to roughing operation in stainless steel and steel with wide application field. Good wear resistance and capability against plastic deformation at normal cutting speed.
YBM253
CVD
M15 - M35
CVD coated M15-M35 carbide grade for medium to roughing operation in stainless steel with wide application field. High wear resistance and capability against plasctic deformation at higher cutting speed.
YBM351
CVD
P25 - P40
M20 - M40
CVD coated P25-P40/M25-M40 carbide grade for roughing operation in stainless steel and steel. Good wear resistance and edge stability at normal cutting speed.
YBD152
CVD
K10 - K25
CVD coated K10-K25 carbide substrate. Optimized for medium to roughing operation of cast iron. Good wear resistance and toughness at higher cutting speed.
YBD252
CVD
K20 - K35
CVD coated K20-K35 carbide substrate. Optimized for medium to roughing operation of cast iron and Steel. Good wear resistance and toughness at higher cutting speed.
YBG101
PVD
N05-N20
PVD coated N05-N20 carbide substrate for finishing to semi-finishing in aluminium materials. Coating only on the top face, in
combination with the aluminium chip breakers, prevents built-up edges and gives a smooth cut.
YBG102
PVD
S05 - S15
PVD coated S05-S15 carbide substrate for finishing to medium application of super alloy material, stainless steel and aluminum.
Good wear resistance in a wide application field.
YBG202
PVD
P10 - P30
M10-M25
PVD coated P10-P30/M10-M25 carbide substrate for finishing to medium application of stainless steel and steel (milling). Good wear resistance in a wide application field.
YBG212
PVD
P25 - P35
M25-M40
PVD coated M25-M40/P25-P35 carbide substrate for steel and stainless steel. Especially for inner insert at drilling operation.
YBS203
PVD
S15 - S25
Turning and milling grades for processing heat-resistant materials. A special carbon substrate and the latest PVD coating technology enable a very good wear behaviour, high fracture toughness and high thermal stability.
YBG205
PVD
P10 - P30
M20 - M40
S15-S25
PVD multilayer coated P10-P30/M20-M40/S15-S25 carbide substrate for finishing to medium machining of stainless steel, super alloys and steel (milling). Excellent wear resistance and thermal stability in a wide range of applications.
YB9320
PVD
P10 - P30
M10-M25
PVD multilayer coated P10-P30/M10-M25 carbide substrate for finishing to medium machining of stainless steel, super alloys and steel (grooving/milling). Optimised coating stability for higher wear resistance and thermal stability in a wide range of applications.
YBG302
PVD
P15 - P30
M25 - M40
PVD coated P15-P30/M25-M40 carbide substrate for medium roughing application of stainless steel and steel (milling). Good wear resistance and toughness.
YBS303
PVD
S25 - S35
Milling grade for machining titanium alloys. A tough carbide substrate and the latest PVD coating technology with increased impact resistance and high thermal stability.
Applications

Applications

Milling inserts are designed for various applications and workpiece, common methods include face milling (for flat surfaces), shoulder milling (for shoulders and steps), slot milling (for slots and grooves), contour milling (for complex shapes), and high-speed milling (for fast material removal) etc. They are suitable for milling steel, aluminum, cast iron, or stainless steel.
